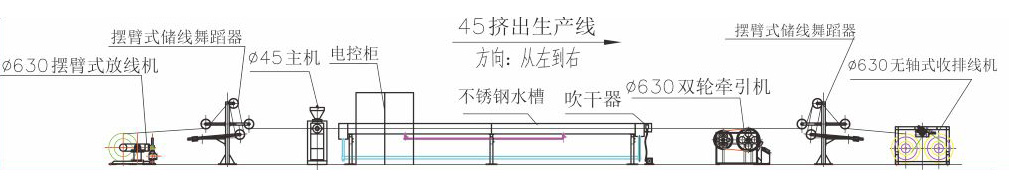

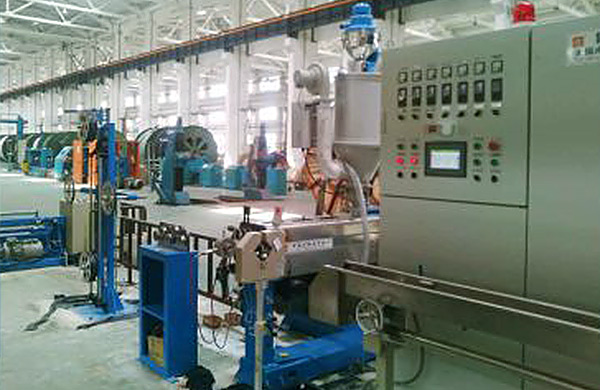

A,Equipment Application:：
The unit is used for copper core insulation coating of middle and small section production,mainly for the soft polyvinyl chloride(PVC),polyethylene and other thermoplastics.
B,Main technical parameters
|
Φ2500 end of shaft motorized
|
0.5~2.5mm
|
|
Five rounds of tensioning device
|
1.5~5.0mm (The diameter tolerance)±0.01mm
|
|
The screw diameter
|
φ45mm
|
|
The screw length to diameter ratio
|
28:1
|
|
Phi80 square sheathed the nose
|
50kg/h (PVC)
|
|
Phi 40 co-extrusion head and vacuum device
|
φ650mm
|
|
Phi 40 co-extrusion head and vacuum device
|
φ500~630mm
|
|
The length of the sink
|
8m
|
|
Equipment center high
|
1000mm
|
|
The power supply
|
Three-phase 380 plus or minus 10%,50 hz with neutral wire
|
|
